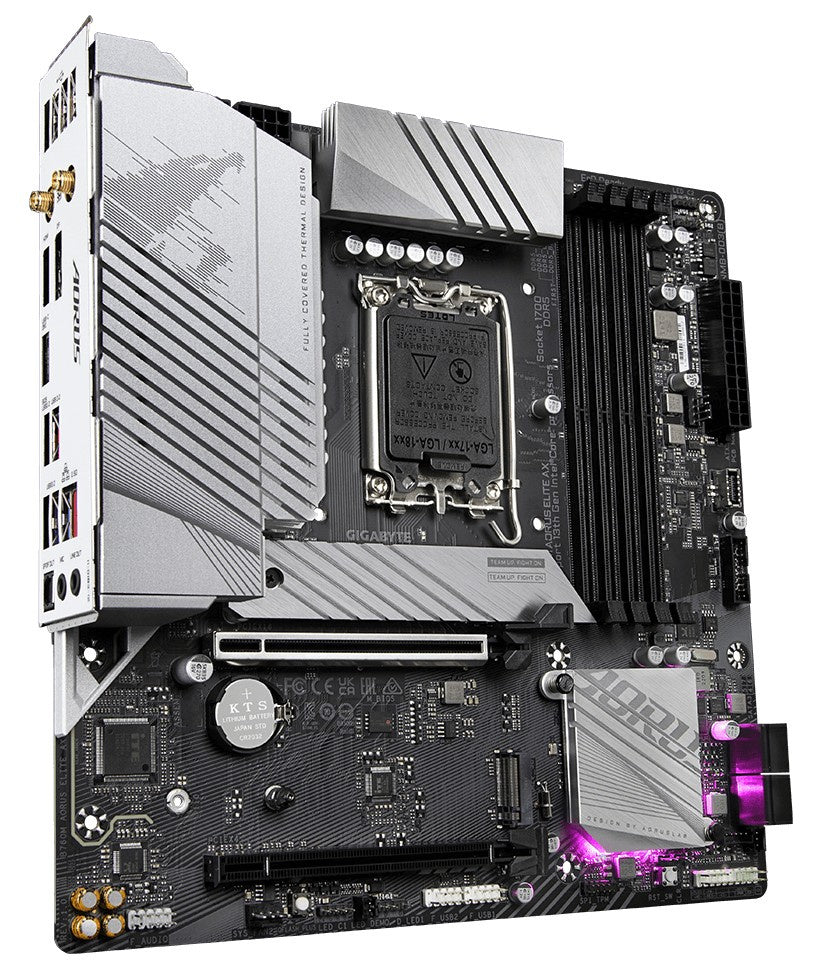

GIGABYTE B760M AORUS ELITE AX DDR5 (LGA 1700 M-ATX MB

Gigabyte B760M AORUS ELITE AX Intel LGA 1700 m-ATX Motherboard, 4x DDR5 ~128GB, 2x PCI-E x16, 2x M.2, 4x SATA, 4x USB 3.2, 1x USB-C, 4x USB 2.0

Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Chipset
Intel® B760 Express Chipset

Memory

Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture

Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
2 x PCI Express x16 slot

Storage Interface
2 x M.2 connector
4 x SATA 6Gb/s connectors

Back Panel Connectors
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
